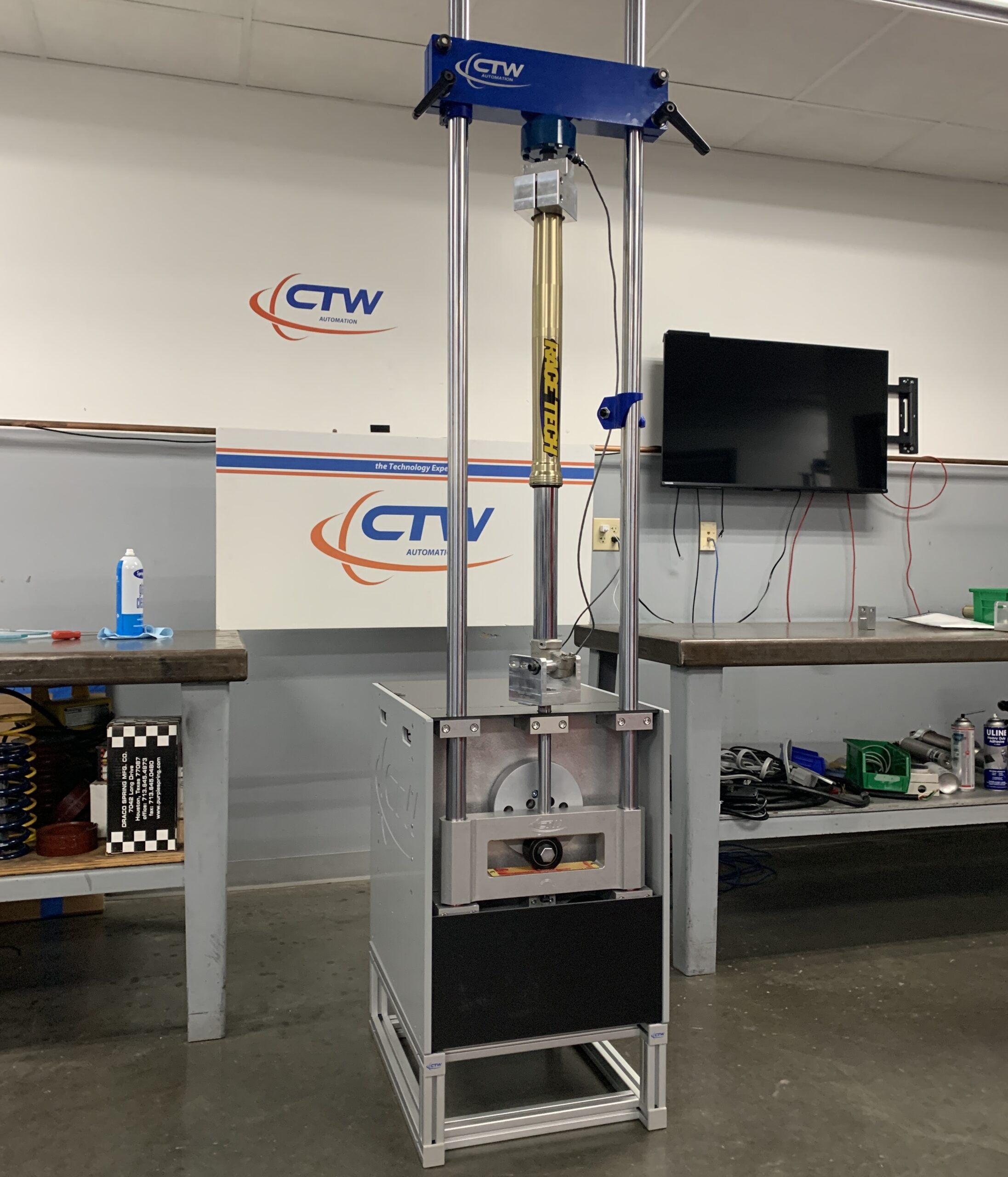

RD5-LS stands for long stroke. This compact machine has 7 available strokes, from 25mm to a peak stroke of 150mm.
This machine was built specifically for the Mountain Bike, Motorcycle and 4×4 damper and fork testing and servicing. From short rear dampers to the long front forks, the range is everything you need.
The RD5-LS uses CTW-Probe Analysis software to allow the user to create and run Tests of various velocities on one of three strokes to collect force data that is presented in various industry-standard graphs. The RD5-LS is a compact, lightweight (semi)tabletop machine that is designed to be structurally sound where loading is applied based on FEA analysis. Measurements are taken based on the line of actuation to ensure only the damper or specimen result is recorded.
Taking deposits now. Expected first delivery end of Q1 2025.
- 5HP AC motor with computer controlled variable speed drive
- 5K Pancake load cell for +/- 5,000 lbf. range
- 4 Clamp cross bar
- Columns for 1260mm test opening
- Strokes (7) available in Metric spacing
- 25-40-50-75-100-125-150 mm
- IR-Temperature sensor and quick release mount
- CTW Probe analysis software
- Clevis fixtures, ½” with pins and brass buttons – set
- Input power 200-240 VAC I/III phase – 40 /23.8 A(i)
- 1-Year Support package
- Longer columns +10"
- Win10/11 laptop set-up for the dyno
- Clevis fixtures (exchange for standard ½”)
- 3/8” or 5/16” – NC
- Range of custom and fixtures including
- Motorcycle damper & fork
- Bicycle
- Extra large ID
- High voltage 380/440 VAC III phase
- NIST traceable calibrations
- Black front cover
- Customer can opt to pick-up in Lexington, NC but then NC State tax applies
- Crate – International heat treated
- Shipping – to be determined
- By ground transport in Continental US
- International shipping is not a problem
For additional questions and sales information,
contact us through sales@CTWautomation.com
Or if you prefer, please contact us directly at: scott@CTWautomation.com, michael@CTWautomation.com
Or call at 336-542-5252
Leasing available through ACG Equipment Finance – Follow to our custom CTW page!
